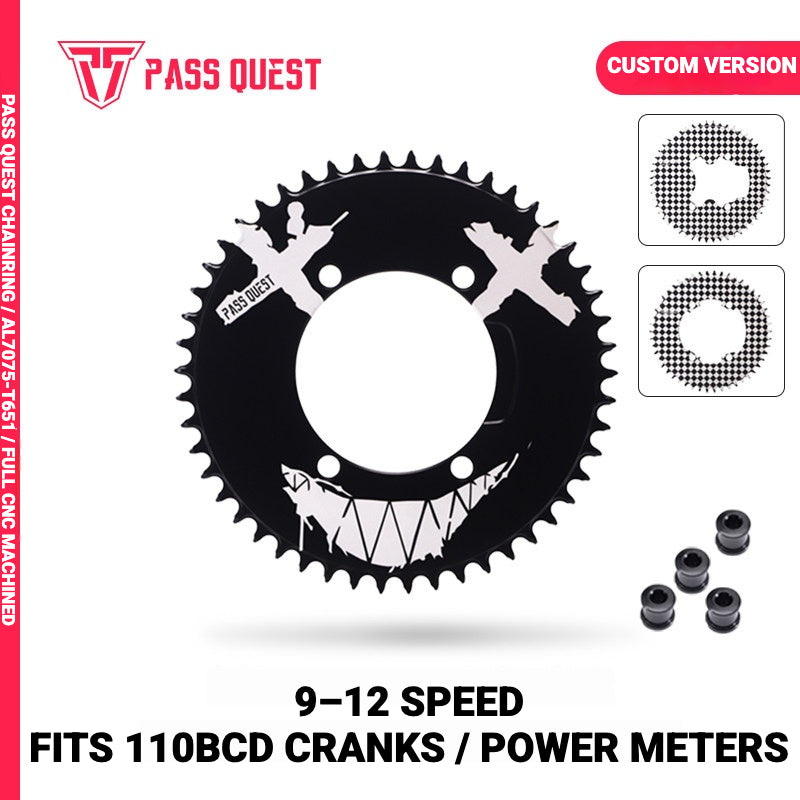

PASS QUEST Custom 110BCD Checkerboard Full-Profile Chainring

Make your drivetrain stand out with the PASS QUEST Custom 110BCD Full-Profile Narrow-Wide Chainring, featuring the distinctive Checkerboard Devil Smile design.

CNC-machined from high-strength 7075-T651 aluminum alloy, this chainring combines a full-profile structure, narrow-wide tooth design and custom graphic finish for riders building a unique 1x road bike.

Because Shimano-style 110BCD 4-arm cranksets use different mounting profiles across generations, this product is made according to your exact crank model.

Please provide your crank model when ordering.

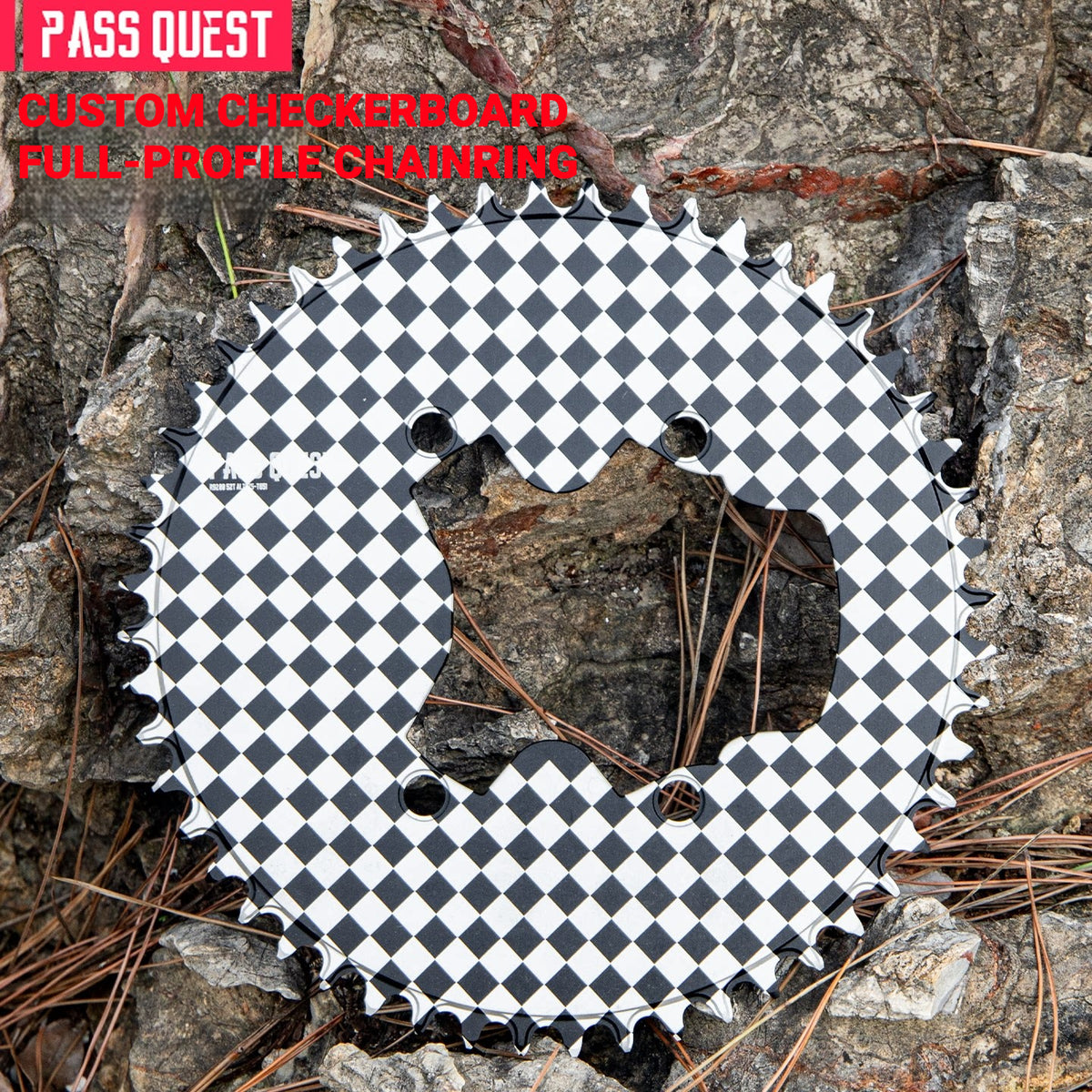

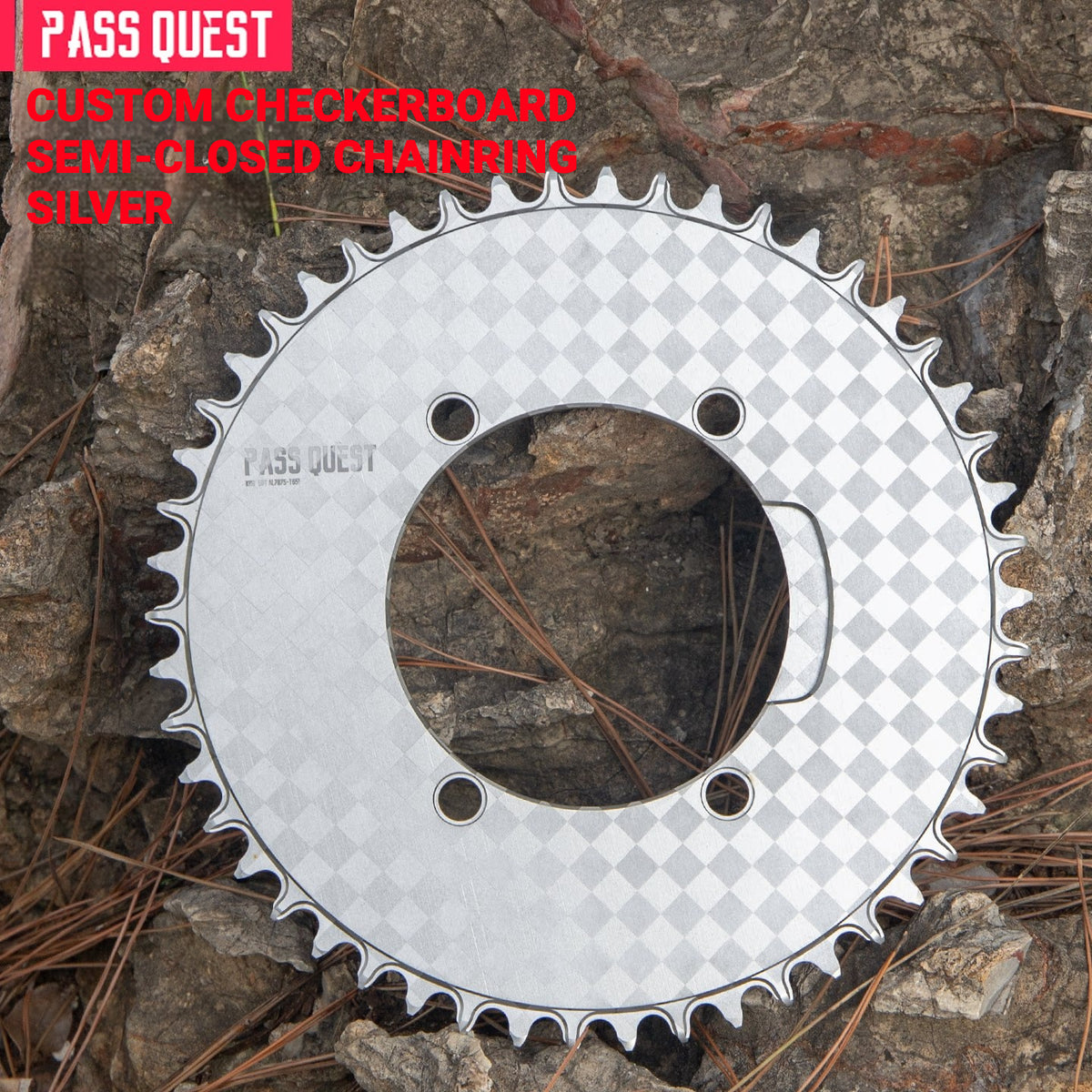

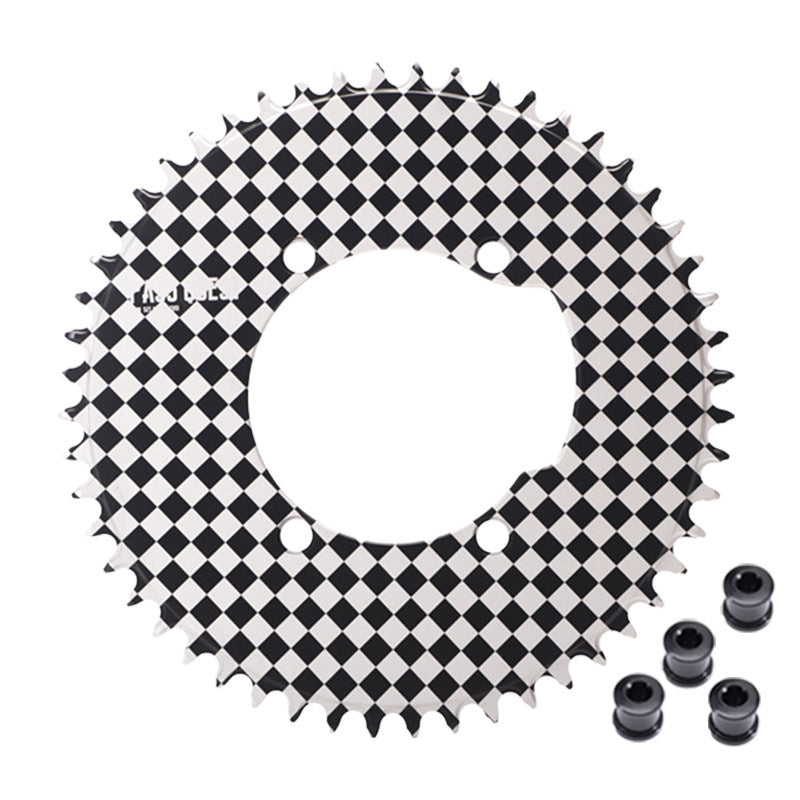

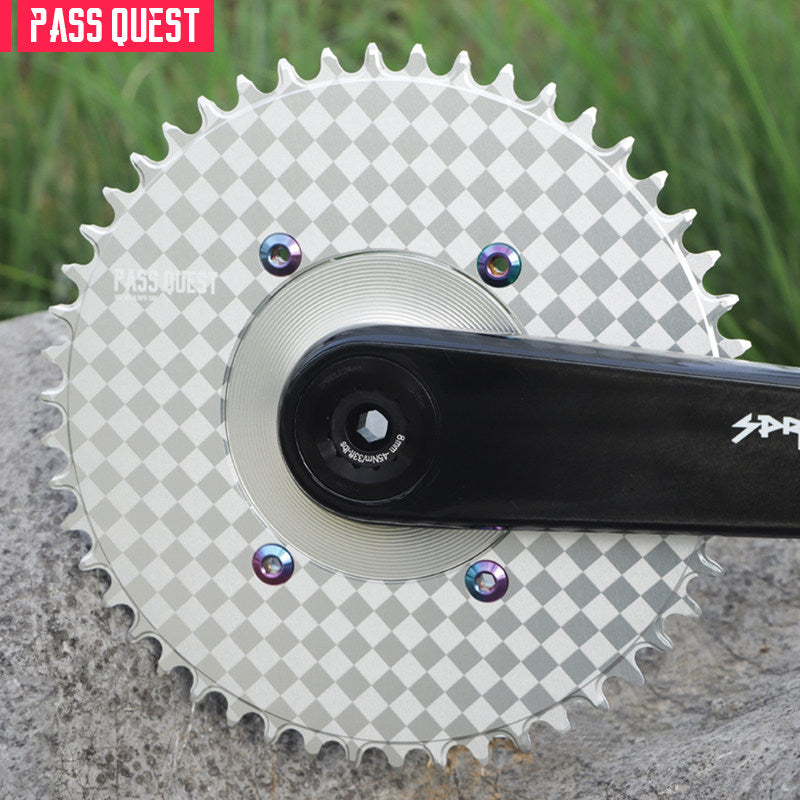

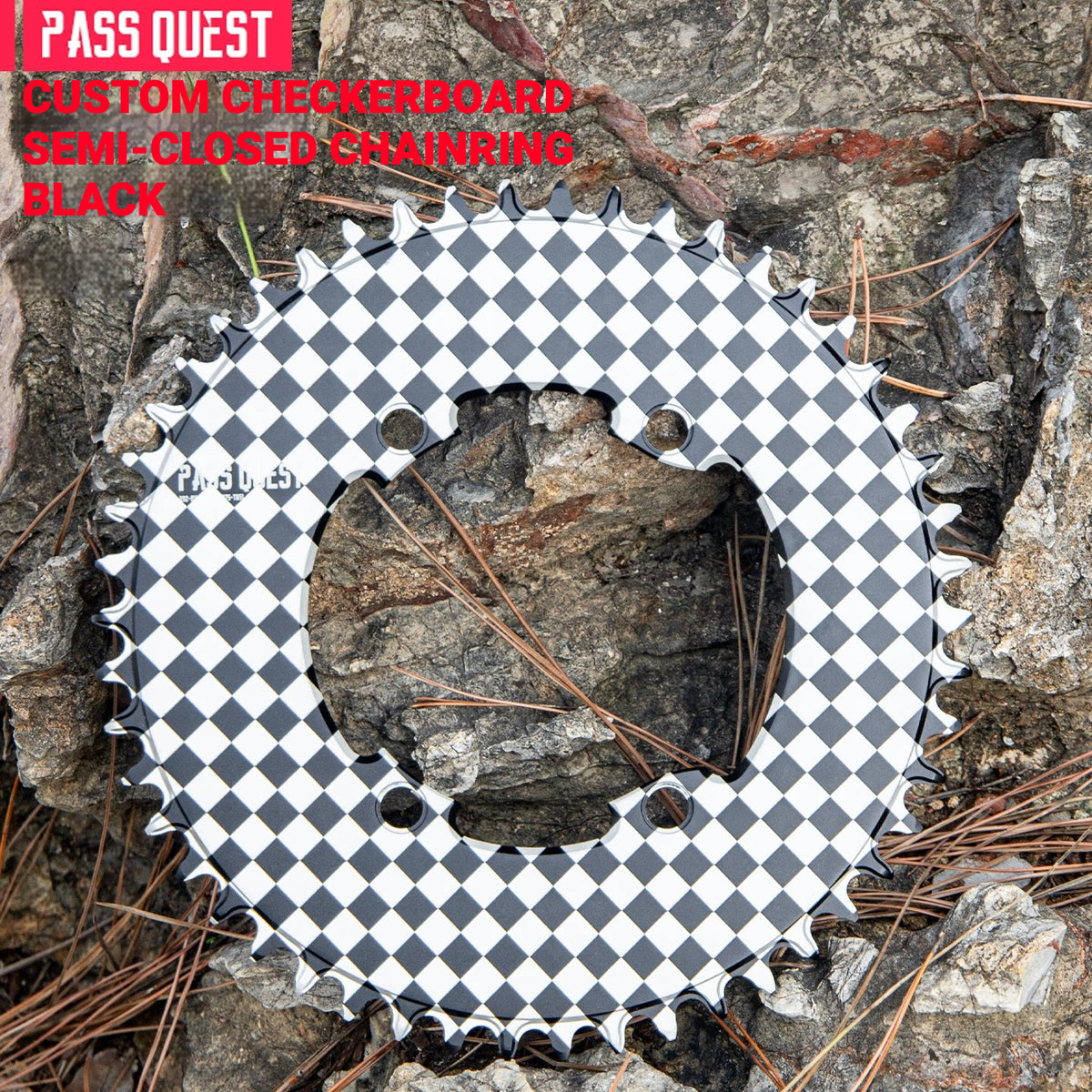

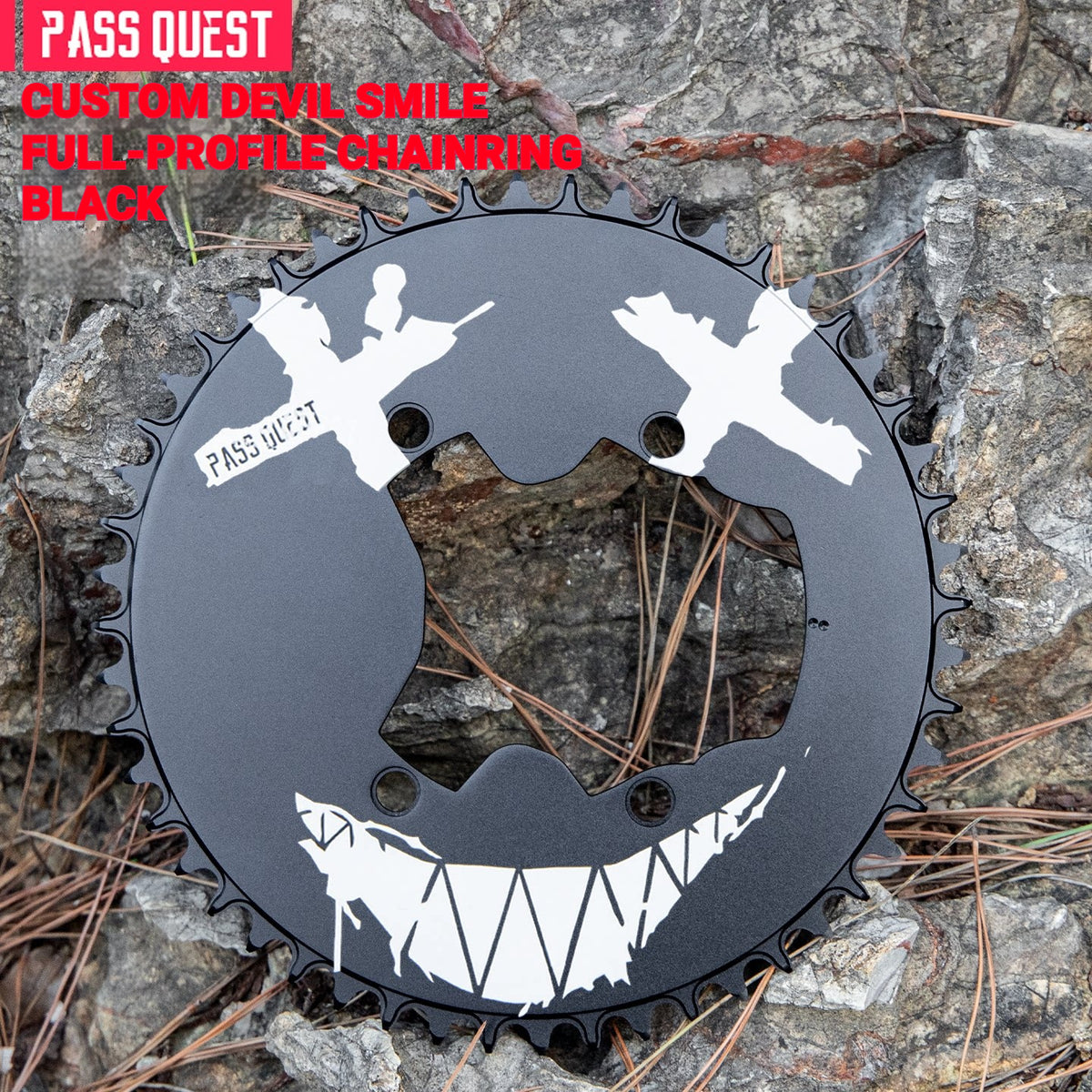

Custom Checkerboard Devil Smile Design

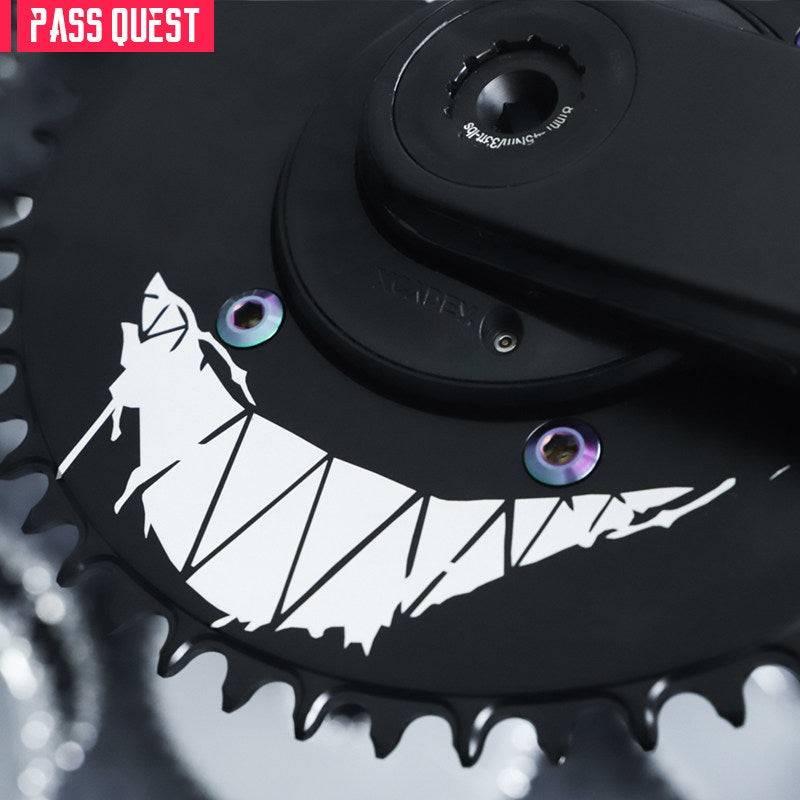

The signature black-and-white checkerboard graphic gives the chainring a distinctive custom appearance, while the Devil Smile pattern creates an aggressive visual effect when installed.

Designed for riders looking for something beyond a standard black or silver chainring.

Perfect for:

• Custom road bike builds
• Race bike builds
• TT-style setups
• Show bikes
• Personalized 1x drivetrains

Crank-Specific Custom Fit

Important: 110BCD 4-arm cranksets are not universally interchangeable.

Several generations use different mounting shapes around the crank spider.

FC-5800 / FC-6800

Uses the earlier 4-arm mounting profile without the curved relief found on later generations.

FC-R7000 / FC-R8000 / FC-R9100

Uses a different profile with a curved section around the upper-right mounting area.

FC-R7100 / FC-R8100 / FC-R9200

Uses the newer-generation profile with curved sections around both the upper-right and lower-right areas.

Because of these differences, please provide your exact crank model when placing your order.

If you are unsure about compatibility, please contact us before ordering.

Full-Profile 1x Design

The chainring is machined from a solid aluminum plate and uses a full-profile / closed-disc design.

Material is strategically removed from the rear where possible to reduce unnecessary weight while maintaining structural strength and rigidity.

The full-profile construction also provides a large surface area for the custom checkerboard graphic, creating a much more distinctive appearance than a conventional open chainring.

7075-T651 Aluminum

Manufactured from high-strength 7075-T651 aluminum alloy and precision CNC-machined for consistent dimensions.

Key characteristics include:

• High strength
• High rigidity
• Good wear resistance
• Lightweight construction
• CNC-machined precision
• Suitable for performance 1x builds

Narrow-Wide Tooth Profile

The chainring uses a narrow-wide tooth profile designed for 1x drivetrains.

The alternating tooth widths provide improved engagement with the chain and help reduce the possibility of chain drop during:

• High-cadence riding
• Sprinting
• Hard acceleration
• Road vibration
• Racing

Chain Compatibility

Depending on the selected configuration, the chainring supports standard:

9 / 10 / 11 / 12-Speed Chains

and compatible configurations can also be produced for:

SRAM AXS 12-Speed Chains

Please select or confirm the required chain type when ordering.

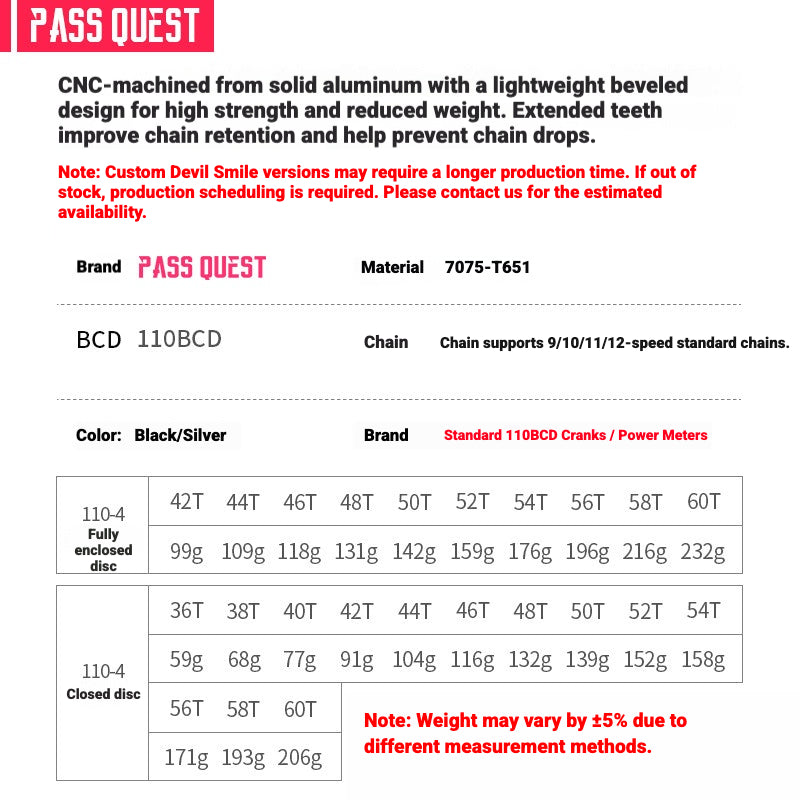

Specifications

Size & Weight

The available size and weight depend on the required crank profile.

110-4 Full-Profile Version

110-4 Closed-Disc Version

Actual weight may vary by approximately ±5% due to production tolerances and different measurement methods.

Because this is a custom product, available sizes may vary depending on your crank model and selected design.

How to Order

When placing your order, please provide:

1. Exact crank model
Example: FC-R9200 / FC-R8100 / FC-R7100 / FC-R9100 / FC-R8000

2. Required chainring size
Example: 48T / 50T / 52T

3. Chain type / speed
Example: Shimano 12-Speed or SRAM AXS 12-Speed

We strongly recommend confirming compatibility before ordering if you are unsure of your crank model.

Custom Production Notice

The Checkerboard Devil Smile version is a custom-production item.

Some configurations may not be available from stock and will require additional production time.

Production time depends on:

• Crank model
• Chainring size
• Current inventory
• Custom production schedule

Please contact customer service if you need to confirm availability or estimated production time before ordering.

Key Features

• Custom Checkerboard Devil Smile graphic
• 110BCD 4-arm design
• Made according to crank model
• Full-profile closed-disc construction
• Narrow-wide tooth profile
• 7075-T651 aluminum alloy
• Precision CNC machining
• Designed for 1x drivetrains
• 9 / 10 / 11 / 12-speed options
• Compatible AXS configuration available
• Multiple tooth-count options
• High rigidity
• Optimized weight
• Distinctive custom appearance

Important Compatibility Notice

Please do not order based on “110BCD” alone.

Different generations of Shimano 110BCD 4-arm cranksets have different spider shapes and mounting profiles.

For example:

FC-5800 / FC-6800 ≠ FC-R7000 / R8000 / R9100 ≠ FC-R7100 / R8100 / R9200

They are not universally interchangeable.

Please provide your exact crank model so the correct version can be supplied.

Package Includes

PASS QUEST Custom Full-Profile Chainring ×1

Crankset, chain, chainring bolts and other accessories are not included unless specifically stated.

Installation Note

Before installation, please verify:

• Exact crank model
• 110BCD 4-arm interface
• Chain type
• Required tooth count
• Frame clearance
• Chainline

For larger chainrings such as 54T / 56T / 58T / 60T, please confirm frame and drivetrain clearance before ordering.

Professional installation is recommended.

Verificação de Compatibilidade: Devido à complexidade dos modelos e lotes das peças de fabricante original (OEM), pode haver casos em que este produto seja incompatível.

Ao receber este produto, por favor, compare-o com as especificações OEM para garantir a compatibilidade antes da instalação.

Especificações de Torque: Instale este produto estritamente de acordo com os valores de torque especificados no manual das peças OEM. Problemas na Instalação: Se você encontrar qualquer discrepância com as especificações OEM ou enfrentar dificuldades na fase inicial da instalação, pare imediatamente e entre em contato com o serviço de atendimento ao cliente para assistência com devoluções ou trocas.

Não Forçar a Instalação: Não force a instalação sob nenhuma circunstância. Responsabilidade: Quaisquer danos resultantes da instalação forçada ou modificações não autorizadas deste produto (ou seus componentes) serão de exclusiva responsabilidade do comprador.

Todos os produtos são fotografados para representar com precisão as cores que você verá ao receber.

Devido a diferenças na iluminação, ângulos ou configurações da tela, podem ocorrer pequenas variações de cor.

O produto real deve ser considerado o padrão. Para produtos "coloridos" e "azuis", o processo de coloração pode resultar em distribuição desigual da cor, tornando cada produto único.
